홈 /제품 소개/디지털 파열 강도 테스터/RH-JS06 EN ISO 1420 1734 RH-JS06 Hydrostatic Pressure Tester

RH-JS06 EN ISO 1420 1734 RH-JS06 Hydrostatic Pressure Tester

1.0 Sets
MOQ
RH-JS06 EN ISO 1420 1734 RH-JS06 Hydrostatic Pressure Tester
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Place of Origin: Guangdong, China
브랜드 이름: Runhu
Model Number: RH-JS06
Power: Electronic
Product name: Synthetic Blood Penetration Tester
기본 정보
Place of Origin: Guangdong, China
브랜드 이름: Runhu
Model Number: RH-JS06
결제 및 배송 조건
Packaging Details: Standard export wooden case
Supply Ability: 10 Box/Boxes per Day
제품 설명
Product Description

Introduction:

RH-JS06 Hydrostatic Pressure Tester is used test the resistance to water penetration for dense fabrics, e.g. medical protective clothing, umbrella, outdoor jacket, ducks, tarpaulins and tents. Use dynamic test, static test and self defined program method to test the water repellency of textiles under certain pressure.

Standards:

BS EN 20811/3321/3424, ISO 811: Textiles - Determination of resistance to water penetration - Hydrostatic pressure test . GB/T 4744: Textiles - Testing and evaluation for water resistance - Hydrostatic pressure method AATCC 127: Test Method for Water Resistance: Hydrostatic Pressure EN 1734: Rubber- or plastics coated fabrics - Determination of resistance to water penetration - Low pressure method ISO 1420: Rubber- or plastics coated fabrics - Determination of resistance to penetration by water FZ/T01004: Coated fabrics- Determination of resistance to penetration by water ASTM F903C: Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Liquids ASTM F1670: Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Synthetic Blood ASTM F1671: Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Blood-Borne Pathogens Using  Phi-X174 Bacteriophage Penetration as a Test System ERT 120-1 160-0；AFNOR G07-057

Test Principle:

The hydrostatic head supported by a fabric is a measure of the opposition to the passage of water through the fabric. A specimen is subjected to a steadily increasing pressure of water on one face, under standard conditions, until penetration occurs in three places. The pressure at which the water penetrates the fabric at the third place is noted. The water pressure may be applied from below or from above the test specimen.


Technical Parameters:

Parameter Item
Technical index
Test Pressure
0-50 kPa
Pressure Accuracy
Resolution 0.1 mbar
Test Area
100cm² （10cm²,19.63cm²,26cm²,28cm²）
Pressure Growth Rate
According to standard，manual input
Units
mbar/kPa/Pa/cm w.c /mm w.c
Specimen Thickness
40mm
Compressed Air
6-8 bar（clean dry air）
Dimensions
400×230×700mm
Weights
31kg
Power
AC220V，50Hz
Detailed Images

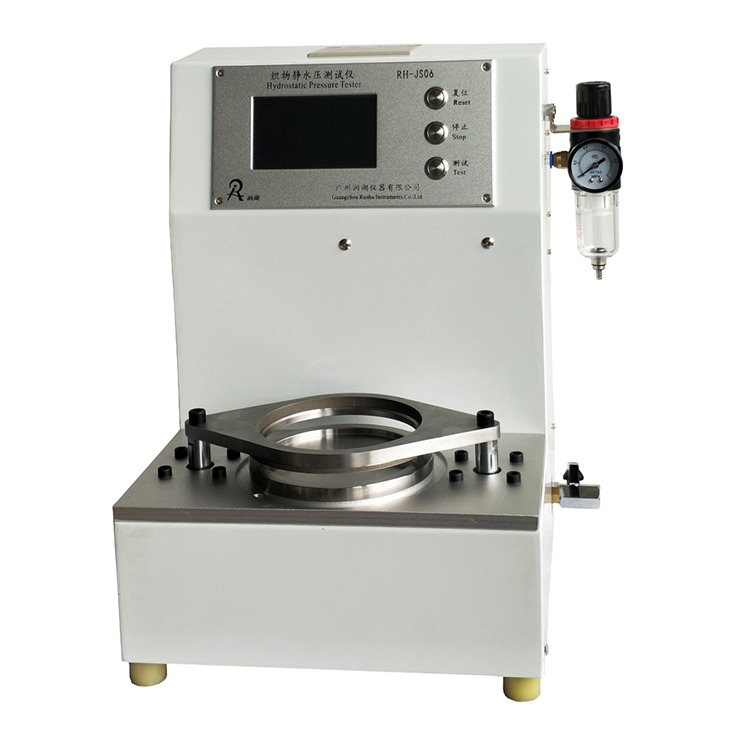

High resolution color touch screen & High precision machining
