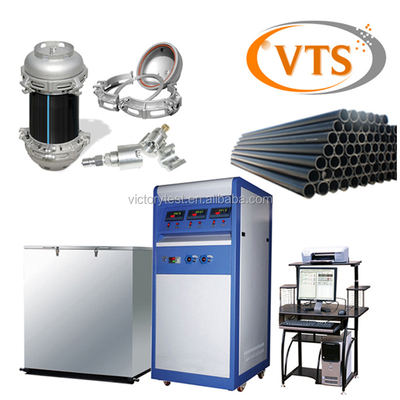

ISO1167 ASTM D1598 ISO9080 ASTM F1335 PVC Plastic pipe Hydrostatic Burst Pressure Testing Machine
(10MPa, 16MPa, 25MPa, 3 stations, room temperature- 95℃,digital +computer double control)
1. Introduction
XGNB Series Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC, PE, PPR, ABS and other plastic pipes. It is under the standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.
2. Main technical parameters
2.1. Pressure range:0-10MPa, 16MPa, 25MPa (100Bar, 160Bar, 250Bar)
2.2. Resolution of pressure testing: 0.001MPa
2.3. Accuracy: Better than ±1%
2.4. Testing pipe: φ20mm-φ630mm
2.5. Test station: 3 stations (standard supply) or even more
2.6. Constant temp. range: room temperature~95℃
2.7. Temp. Accuracy: ±0.1℃
2.8. Temp. evenness: ±1 ℃
2.9. Time range: 1s-8760h
2.10. Time accuracy: ≤±0.1%
2.11. Power supply: 3 phase, 380v±10%, 50Hz
3. Work principle (test three pipes at the same time)
4. End caps
5. Water tank
6. Test software
