SATRA TM 92 Standard Finished Shoes Bending Footwear Flexing Lab Universal Testing Equipment Machine
SATRA TM 92 Standard Finished Shoes Bending Footwear Flexing Lab Universal Testing Equipment Machine

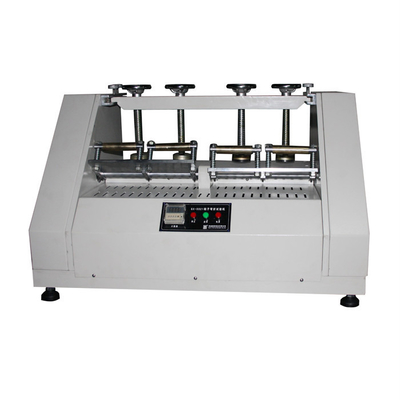

1. Product Name: Finished Shoes Bending Testing Machine
2. Product Model: GX-5021
3. Test Standard:SATRA TM 92
4. Description: The tester is mainly for the bending test of sports shoes, casual shoes and working shoes. After long-time continuous bending test with the set frequency and angle, check the crack degree and value the bending resistance property.
5.Test Principle:Install the sample into the tester and the tester will push the forefoot of the shoes with the set frequency and angle to simulate the walking of man. The result would indicate the fatigue resistance and service life of the shoes.
6. Technical Parameters:
|
Sample |
Two pairs each test,children shoes4-13 yards,adult shoes 1-12yards(The British size ) |
|
Bending Angle |
30°,45°,50°,60°,90°(adjustable) |
|
Test Speed |
50~150r/min |
|
Sample Length |
150~400mm |
|
Sample Width |
150mm(MAX) for each |
|
Counter |
LED display, 0~999,999 |
|
Motor |
DC1/2HP |
|
Volume |
97×77×70cm |
|
Weight |
236kg |
|
Power |
AC220V,3A |
7.Operation Steps:
(1)Open the power button.
(2)Set the bending times on the counter.
(3)Press the start button .The machine starts working.
(4) Press stop to end the test.
8. Result Recording:
(1)Record way:
1.1The sole: Observe the crack degree and measure the length and depth.
1.2 Finished Shoes: Observe the tackless and crack and record the degree.
(2) Record the bending times and testing angle.
