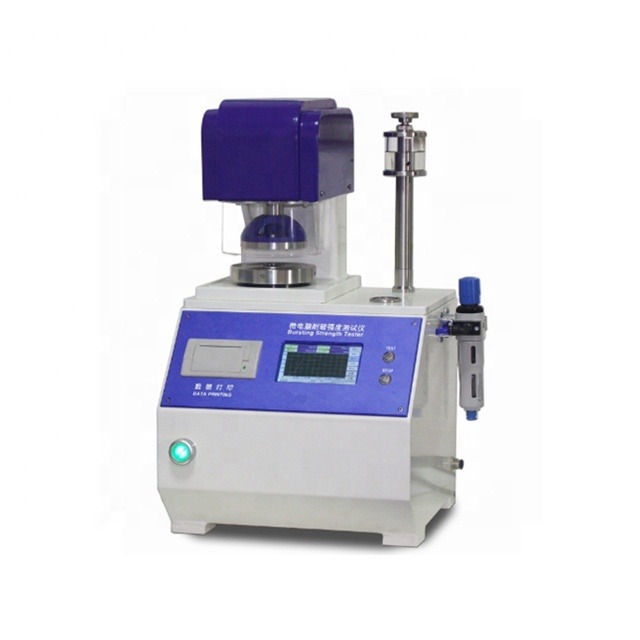

Resistance Determination for Board and Paper and Paper Board Resistance Tester

1.0 Sets
MOQ
Resistance Determination for Board and Paper and Paper Board Resistance Tester
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 years
Customized support: OEM
Place of Origin: Shandong, China
브랜드 이름: Cell Instruments
Model Number: BNP ZNP
Power: Electronic
Brand: Cell Instruments
Function: determination of bursting strength for board and paper
test range: for Paper: 70~1600 KPa for Board: 150 ~5600kpa
Display: HMI touch screen
accuracy: 0.01 KPa
Power supply: 220V
Diaphragm resistance: (9±0.2)mm/(30±5)kPa
Unit Conversion: Kg/cm2, kpa, LBF/in2
Force Accuracy: + / - 0.1% or less
Clamping Force: 100kpa~1200kpa(adjustable)
기본 정보
Place of Origin: Shandong, China
브랜드 이름: Cell Instruments, Cell Instruments
Model Number: BNP ZNP
결제 및 배송 조건
제품 설명
Product Description

Paper and board bursting tester is for the bursting strength of corrugated boards, which is designed in accordance with
ISO2759 'Board-Determination of bursting strength'.


Working principle

Working mechanism

A test piece, placed over a circular elastic diaphragm, is rigidly clamped at the periphery but free to bulge with the diaphragm.
Hydraulic fluid is pumped at a constant rate, bulg ing the diaphram until the test piece rutures. The bursting strength of the
test piece is the maxium value of the applied hydraulic pressure.


Product Paramenters
Test Range
Model ZNP-01 for Paper: 70~1600 KPa
Model BNP-01 for Board: 150 ~5600kpa
Force Accuracy
+ / - 0.1%
Resolution
0.01 KPa
Diaphragm resistance
 (9±0.2)mm/（30±5)kPa
Transmit Hydraulic Volume
95±5ml/min (for paper)
175±5ml/min (for board)
Plate Diameter
upper:30.5±0.1mm, lower: 33.5±0.1mm (for paper)
upper:31.5±0.1mm, lower: 31.5±0.1mm (for board)
Unit Conversion
Kg/cm2, kpa, LBF/in2
Manufacturing Technique

* 5 in touch screen operation
* High-strength high-pressure oil circuit sealing system with double seal knob
* Delayed pressurization and pressure relief control
* Equipped with water vapor filter device, protection circuit device stability
* Equipped with calibration and manual pressurization and pressure relief control systems
* The cylinder part, the upper and lower clamping parts are 304 stainless steel
* With safety cover, and power supply anti-interference protection module
* Chinese and English dual language switching
* Units conversion of Kg/cm2、kpa、lbf/in2
* Micro printing
Packing & Delivery

Plywood carton, EVA&wrapping film
