홈 /제품 소개/공기 파열 강도 테스터/YT-NPY5600Q high quality diaphragm mullen burst test machine for corrugated YT-NPY5600Q

YT-NPY5600Q high quality diaphragm mullen burst test machine for corrugated YT-NPY5600Q

1 Unit
MOQ
$2,800.00(>=1 Units)
가격
YT-NPY5600Q high quality diaphragm mullen burst test machine for corrugated YT-NPY5600Q
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 year
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Zhejiang, China
브랜드 이름: YANTE
Model Number: YT-NPY5600Q
Power: Electronic
Warranty Period: One Year
Measuring Range: 250~5600 kPa
인증: pcoc
기본 정보
Place of Origin: Zhejiang, China
브랜드 이름: YANTE
인증: pcoc
Model Number: YT-NPY5600Q
결제 및 배송 조건
Packaging Details: Ply-wooden cases, inner plastic films wrapped.
Supply Ability: 50 Unit/Units per Month
제품 설명
Product Overview

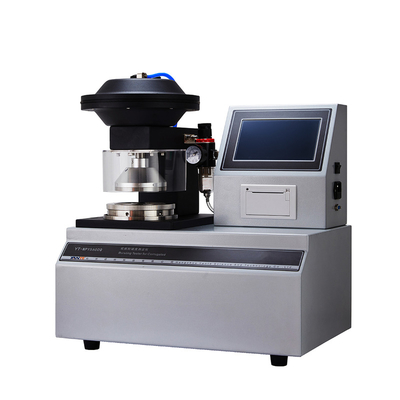

Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.
Features At A Glance

The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range. Pneumatic clamping system, one key test. ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data. Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued. Over-range automatic reset. Three units can be selected kPa, kgf/cm2, Psi, can be switched at will Communication with computer software (purchase separately)
Details Images
Application Range
Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials.
Execute Standard
GB/T 1539，QB/T 2679.8，GB/T 6545，ISO 2759
Sales And Service Network
Product Paramenters
No.
Parameter item
Technical index
1
Power Supply
AC100V±10% or AC220V±10%，(50/60)Hz，150W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Measuring range
250～5600kPa
4
Indication error
±0.5%(Range 5%～100%)
5
Resolution
1kPa
6
Refueling speed
170±15ml/min
7
Air pressure adjustment
0.4MPa
8
Hydraulic system tightness
Upper limit of measurement，1min Pressure drop＜10％Pmax
9
Upper clamp ring aperture
31.5±0.05 mm
10
Lower clamp ring aperture
31.5±0.05 mm
11
Print
Built-in thermal printer
12
Communication Interface
RS232(Default) (USB, WIFI optional)
13
Dimension
470×315×520 mm
14
Net Weight
56kg around
Recommend Products
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
Box Compression Tester is a professional testing machine for testing the compressive performance of cartons. It is suitable for compressive tests of corrugated boxes, honeycomb boxes and other packaging boxes.
Paper Tube Compression Tester is a testing instrument for testing the compressive strength of paper tubes.Deformation testing is an ideal testing equipment for paper tube manufacturers, quality testing institutions and other departments.
