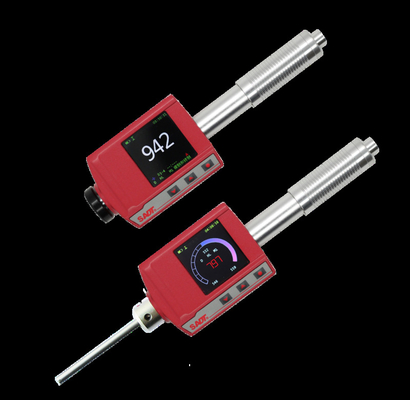

New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional
HARTIP4100 is an advanced state-of-the-art palm sized metal hardness tester with many new features.
It is used our patent technology which makes it to have extraordinary accuracy:+/-2HL with high contrast colour TFT display and durable metal housing.
It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colort for easy visual distinguish.
It can download measuring data to PC and printout to mecro-printer by USB port and wirelessly with internal wireless module.
The battery can be charged simply from USB port , also it has a customer re-calibration and statistics function.
Advantages:
* Integrated design , easy operation
* Durable metal housing
* TFT320*320 colour display
* Wide operation environment : -20ºC-70ºC
* High accuracy:+/-2HL (or 0.3% @HL800)
* Auto compensate error for different impact direction
* Moving bar-graph display
* Two evaluation modes: By limit / Deviation
* Two Calibration modes:Coincident / Independent
* Multi-printing mode
* Four display styles
* Sound reminder
* Up to 10 kinds of menu language
* D & DL two in one probe
* It can connect to computer by USB or Bluetooth
* USB and Bluetooth interface, it can connect micro-printer wirelessly
* 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source
* Statistics value can be calculated automatically
* With strength conversion value
* Power on / off automatically or manually
* Packed in rigid carrying case
Specifications:
| Model | SADT HARTIP4100 |
| Principle | Leeb hardness measurement |
| Accuracy | ±0.3% @ HL=800 / ±2HL |
| Display | High contrast color TFT 320*320 |
| Hardness scale | HL / HRC / HRB / HB / HV / HS / HRA /σb |
| Measuring range | HL100-960 / HRC0.9-79.2 / HRB1.2-140/ HB1-1878/ HV1-1698 / HS0.5-128/ HRA7-88.5 / σb(rm)24-6599N/mm2 |
| Probe | D/ D-DL 2-in-1 (internal) |
| Materials and curves | 11 common metal materials, 75 curves |
| Memory | 30/60 files on request , 100 data for each file , can be saved and re-readable |
| Statistics function | Average /Max. /Min. /S.value |
| Re-calibration | Coincident /Independent |
| Indicator | Low battery |
| Language | Chinese,English,Traditional Chinese, Russian, German,French, Italian, Turkish, Spanish,Korean |
| Interface | USB/Bluetooth to PC for transfering data , wireless printing , USB for charging |
| Power on/off | Auto/Manual |
| Power supply | 3.7V Li-ion rechargeable battery |
| Working environment | -20°c~+70°c |
| Dimension (mm) | 148*44*22 |
| Net weight (g) | 115 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
| D-DL 2-in-1 probe is only available for DL models | |
